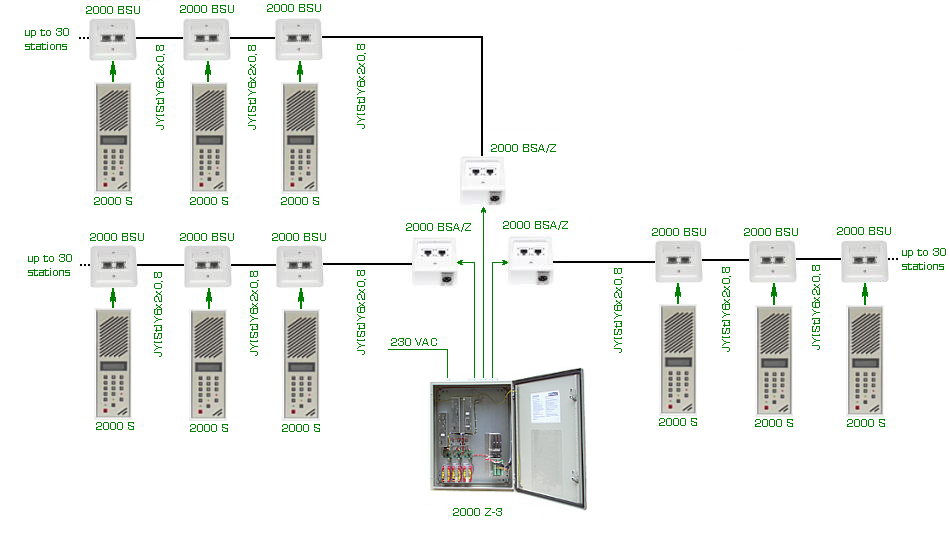

Large system with up to 90 stations of any types (here for instance stations 2000 S) in three sections. System is powered by power supply 2000 Z-3. The three section cables of this power supply are connected to the sockets 2000 BSA/Z. In the last socket or station in each section it is necessary to connect end resistor 470 Ohm between terminals 3 and 4. |
|
| Needed material: | 1 | pc |
| |||||
| until 90 | pcs | Any type of stations (here |
| with sockets |
| |||
| 3 | pcs |
| ||||||
