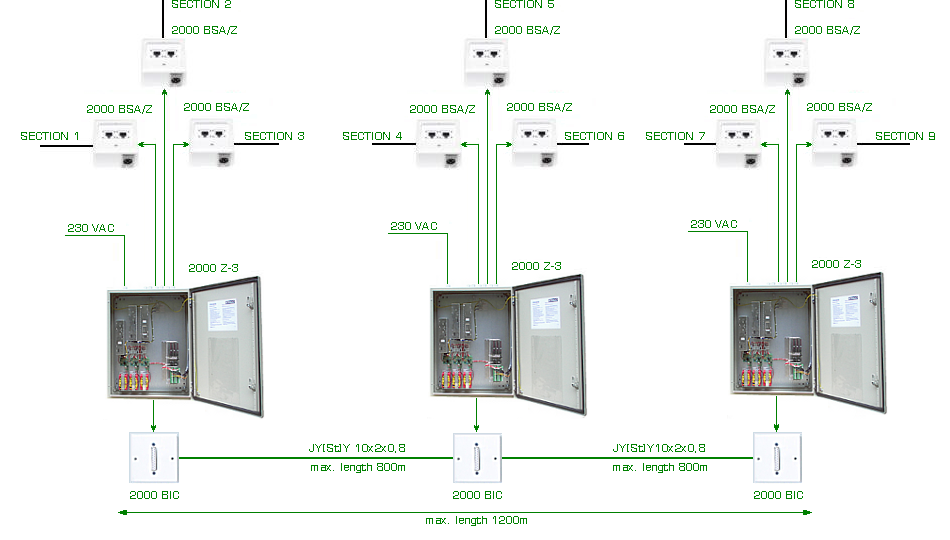

Large system with up to 270 stations of any types in nine sections. System is powered by three power supplies 2000 Z-3 (you can connect any combination of power supplies 2000 Z-2, 2000 Z-3 and 2000 Z-4). The section cables of these power supplies are connected to the sockets 2000 BSA/Z. In the last socket or station in each section it is necessary to connect end resistor 470 Ohm between terminals 3 and 4. Each power supply is connected to the 2000 BIC socket using BIC cable (BIC cable is a part of power supply - must be specified in the order together with numbers of sections). Sockets 2000 BIC are connected together using cable JY(St)Y10x2x0,8. Maximal length of cable between two sockets 2000 BIC is 800m. Maximal length of cable between first and last socket 2000 BIC is 1200m. |
| Needed material: | 3 pcs | Power supply 2000 Z-3 | (with BIC cable, for sections ...) |
|
| | 3 pcs | 2000 BIC socket for internal BUS |
|
| | 3 pcs | |
