System 2000 - Applications

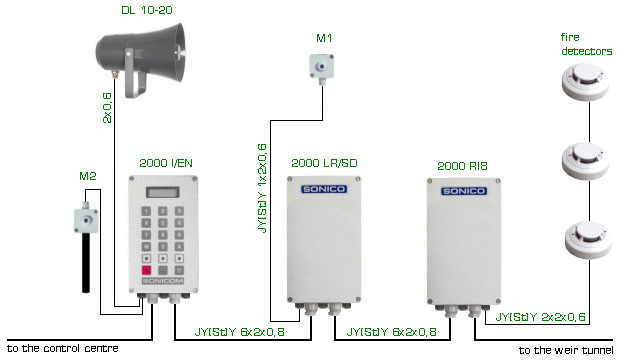

In the small hydroelectric power plant there is installed industrial station 2000 I/EN with noise compensation equipped with horn loudspeaker DL 10-20 and compensated microphone M2 for communication with workers. Connection station 2000 LR/SD with acoustic detector equipped with microphone box M1 is monitoring the noise. If the noise grows up above the level set (bearing is broken, driving-belt is sliding, etc.), connection station 2000 LR/SD automatically calls to the communication station 2000 S in control centre and transmits sound from small hydroelectric power plant. It enables to detect some problems before control system is able to detect them. Distribution frames and generators are equipped with fire detectors connected to the relay unit 2000 RI8. Fire alarm is transmitted to the control computer through interface 2000 RS232/LR and from the control computer to defined SONICOM stations, telephones and wireless pagers.
