System 2000 - Applications

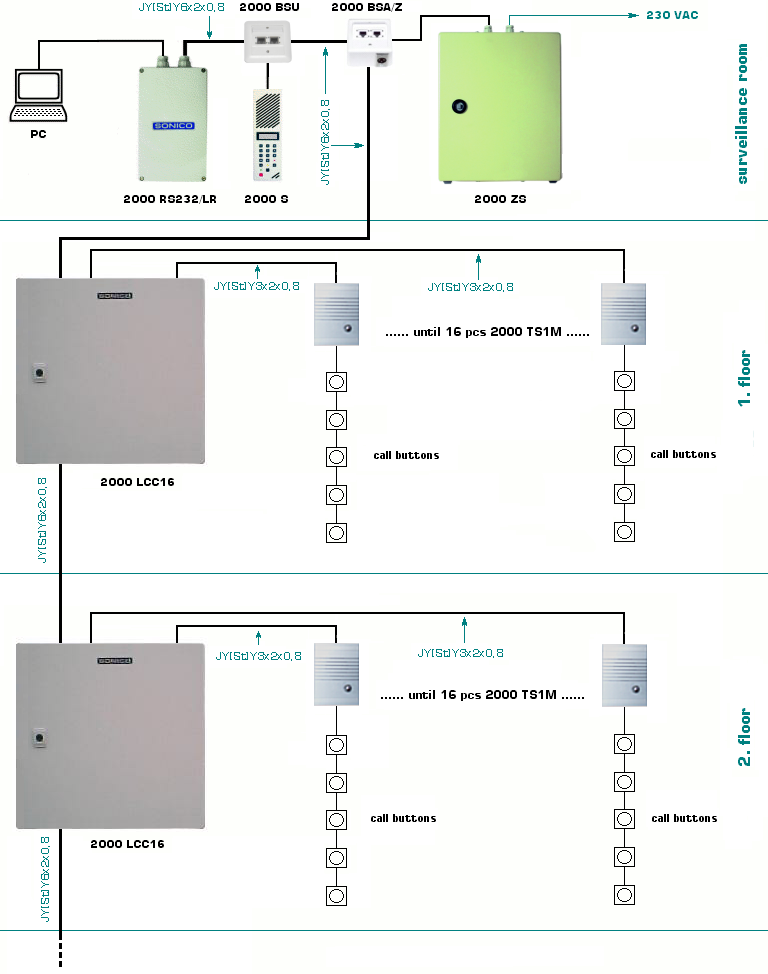

Parking with several floors



System for communication with parking service and emergency calls. Each parking place is equipped with call button 2000 Pw (it is also possible to use buttons in housing IP65), for six parking places together one door call station 2000 TS1M is installed. In the surveillance room there are installed communication station 2000 S, power supply 2000 ZS and interface 2000 RS232/LR. Because of high sensitivity of the microphone in door call station 2000 TS1M it is possible to call for help and speak with parking service from any parking place. Parking service can speak to any parking place or to all parking places in the same time. Information about time and origin of calls are registered in PC. It is possible to record the content of calls (with interface 2000 LR/Rec), too.



Parking with several floors



Needed material:1 pc
Communication station 2000 S
 1 pc
Socket 2000 BSU
(or
2000 BSA)
 1 pc
Power supply 2000 ZS
 1 pc
Socket 2000 BSA/Z
 2 pc
Local communication controller 2000 LCC16
 until 32 pcs
Door call station 2000 TS1M
 until 160 pcs
Call button 2000 Pw
 1 pc
Interface 2000 RS232/LR
